Torque Tools

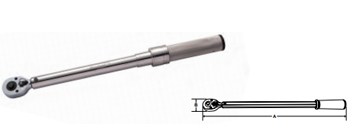

Adjustable Click-Type Torque Wrench
- Dual scale, calibrated dual direction
- Positive lock with spring loaded pull down lock ring
- Fast, accurate and easy to set
- Easy-to-read laser marked scales
- Most feature quick release buttons which provide good socket retention as well as easy socket removal
- Accuracy: ± 3% CW ± 4% CCW of indicated value, CW, from 20% to 100% of full scale
- Meets or exceeds ASME B107.14-2004, ISO 6789 standards
- Individually serialized with matching certificate of calibration traceable to N.I.S.T.
| PART NO. | SQ. DRIVE (inches) |
RANGE (Nm) |
RANGE (ft.lb.) |
INCREMENT (Nm) |
A (mm) |
B (mm) |
WEIGHT (g) |
|---|---|---|---|---|---|---|---|
| BP501NMRMH | 1/4 | 1.0 - 5.0 | 0 1 - 4 | 0.06 | 258 | 27 | 386 |
| BP2502NMRMH | 3/8 | 4.0 - 27.7 | 3 - 20 | 0.12 | 286 | 27 | 431 |
| BP602NMRMH | 3/8 | 10 - 60 | 8 - 45 | 0.5 | 406 | 36 | 1,134 |
| BP1002NMRMH | 3/8 | 20 - 100 | 15 - 75 | 0.5 | 406 | 36 | 1,134 |
| BP2003NMRMH | 1/2 | 40 - 200 | 30 - 147.5 | 2 | 483 | 43 | 1,474 |
| BP3403NMRMH | 1/2 | 60 - 340 | 45 - 250 | 2 | 620 | 43 | 1,542 |
| BP8004NMRMH | 3/4 | 150 - 800 | 110 - 600 | 5 | 1,067 | 64 | 5,375 |
| BP15005NMRMH | 1 | 300 - 1500 | 220 - 1100 | 10 | 1,778 | 76 | 11,385 |

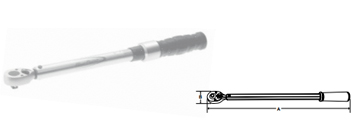

Adjustable Click-Type Torque Wrench
- Aluminium alloy body with high durability satin plated finish
- Comfort-Grip handle
- 36 tooth ratchet heads; tighter “swing arc” than competitor 24T models
- Ratchets are bi-directional
- Long life – Blue-Point torque wrenches survived 25,000 cycle testing in both directions
- Single scale in Nm is standard, but dual scale Nm/ft.lb. can also be available
- Cardboard box packaging with calibration certificate
| PART NO. | SQ. DRIVE (inches) |
RANGE (Nm) |
RANGE (ft.lb.) |
INCREMENT (Nm) |
A (mm) |
B (mm) |
WEIGHT (g) |
|---|---|---|---|---|---|---|---|
| BP602NMRPHZ | 3/8 | 10 - 60 | 7.3 - 44.2 | 0.5 | 406 | 36 | 1,134 |
| BP1002NMRPHZ | 3/8 | 20 - 100 | 14.7 - 73.7 | 0.5 | 406 | 36 | 1,134 |
| BP2003NMRPHZ | 1/2 | 40 - 200 | 30 - 147.5 | 2 | 483 | 43 | 1,474 |
| BP3403NMRPHZ | 1/2 | 60 - 340 | 44.2 - 250.8 | 2 | 620 | 43 | 1,542 |

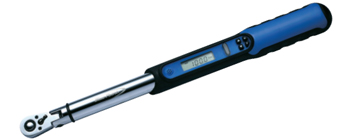

COMPUTORQ 3 Digital Torque Wrench
- Sleek new design
- 15˚ flex ratcheting head
- Push button socket release head
- Large, easy to read digital display
- Long battery life, uses 2 each CR123 lithium batteries
- Ergonomically designed molded non-slip rubber grip
- Torques in both clockwise and counterclockwise directions
- Battery saving auto-shutoff after two minutes
- COMPUTORQ 3 remembers last unit and torque setting selected
- Audible tone sounds when set torque value is reached, if the set torque value is exceeded, an alarm tone will sound
- 3 color LED light bar:
YELLOW LED indicates approaching desired torque setting
GREEN LED indicates desired torque value is reached
RED LED indicates fastener was overtorqued, loosen and retighten - When desired torque value is reached, display will hold value and flash for ten seconds
- COMPUTORQ 3 will operate in any of four torque units, foot pound (ft.lb.), inch pound (in.lb.), newton meter (Nm) or kilogram centimeter (kg.cm.)
- ACCURACY:
± 2% CW of readings from 10% to 100% of full scale
± 3% CCW of readings from 20% to 100% of full scale - N.I.S.T. traceable certificate of calibration included
- Meets or exceeds ASME B107.28 - 2005
| PART NO. | SQ. DRIVE (inches) |
RANGE (ft.lb.) |
RANGE (in.lb.) |
RANGE (Nm) |
RANGE (kg.cm.) |
LENGTH (mm) |
WEIGHT (g) |
|---|---|---|---|---|---|---|---|
| BP2401CI3 | 1/4 | 2.0 - 20.0 | 24 - 240 | 2.71 - 27.10 | 27.6 - 276 | 381 | 910 |
| BP1002CF3 | 3/8 | 10.0 - 100.0 | 120 - 1200 | 13.6 - 135.6 | 138 - 1382 | 432 | 1,000 |
| BP2503CF3 | 1/2 | 25 - 250 | 300 - 3000 | 33.8 - 338 | 345 - 3456 | 686 | 1,590 |
